Build multi-cloud & hybrid networks

Goals

The purpose of this guide is to create four distributed networks and combine them into one highly available logically connected network.

• Build with the top three cloud vendors (aws.amazon.com, azure.microsoft.com, cloud.google.com) and one On-Premise (pfsense.org) network
• Scale Mesh network topology to allow additional point-to-point connections
• Dynamic routing between Autonomous Systems (AS) using Border Gateway Protocol (BGP)
• Encrypt network traversal over Virtual Private Network (VPN) tunnels using Internet Protocol Security (IPSec)

AWS	Azure	CGP	PFSense
Network	VNET	VPC	VLAN
Gateway	VWAN	NCC	ISP
DNS	Private Resolver	Cloud DNS	Pihole
S2S	Connection	Peer VPN	IPSec
SSM	Azure vm	GCP vm	Mac

Network

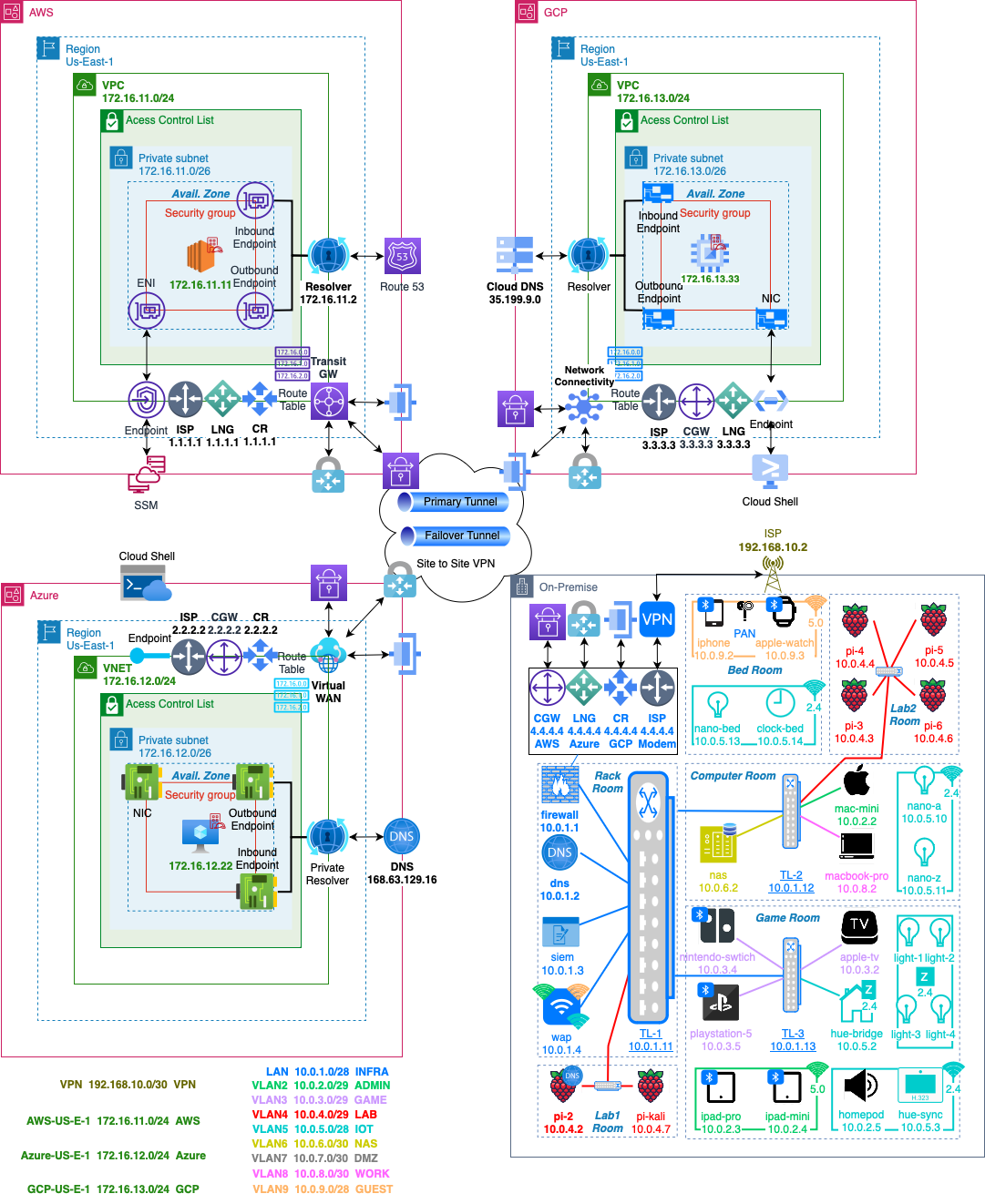

• Final mesh network topology architecture

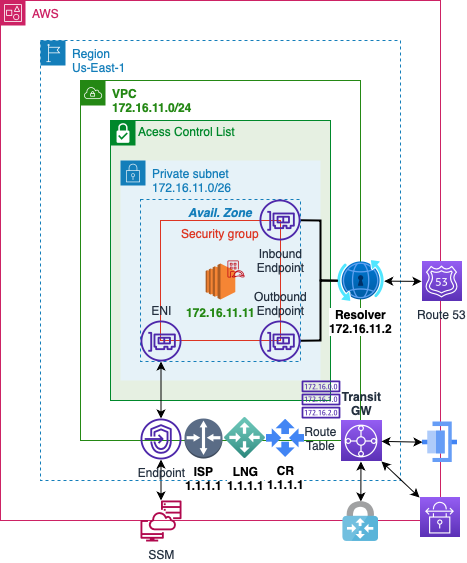

AWS

Network

• Create a Virtual Private Cloud Network in AWS

Resource to Create	VPC and more
Name	vpc-aws
IPv4 CIDR block	172.16.11.0/24
Num of AZs	2
Public	0
Private	2
NAT	None
Endpoint	None

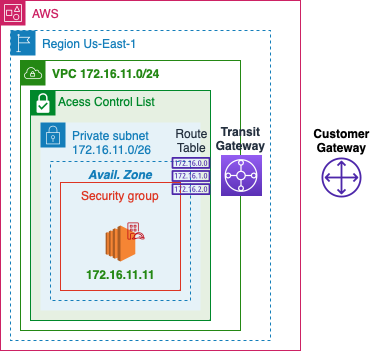

Gateway

• Identify the IP address of the ISP
• Point to Point Identification and traffic passthrough

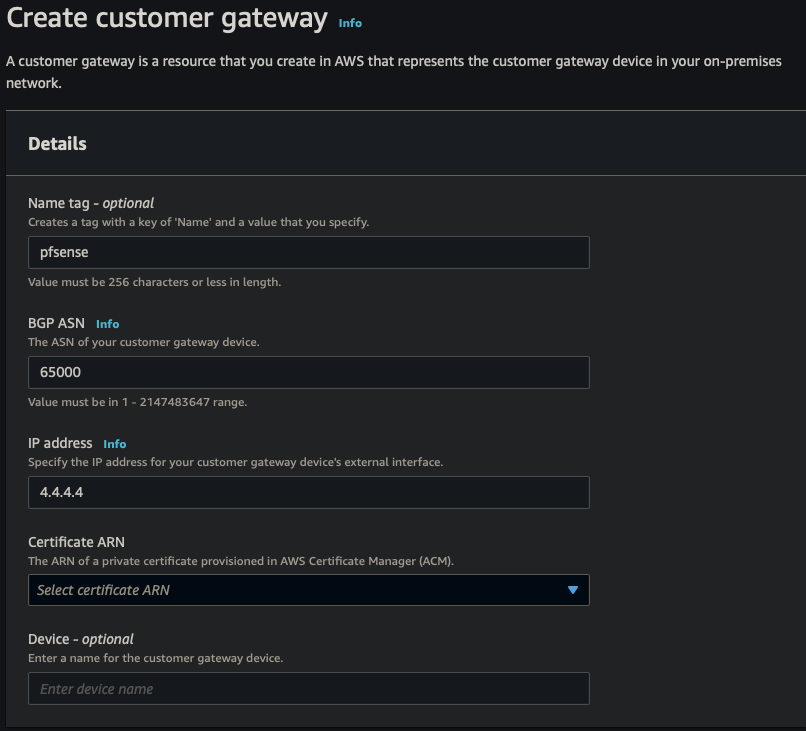

Customer Gateway

Name	pfsense
BGP ASN	65000
IP address	4.4.4.4

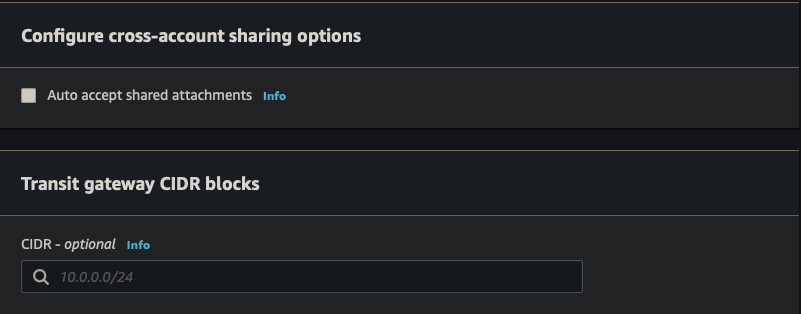

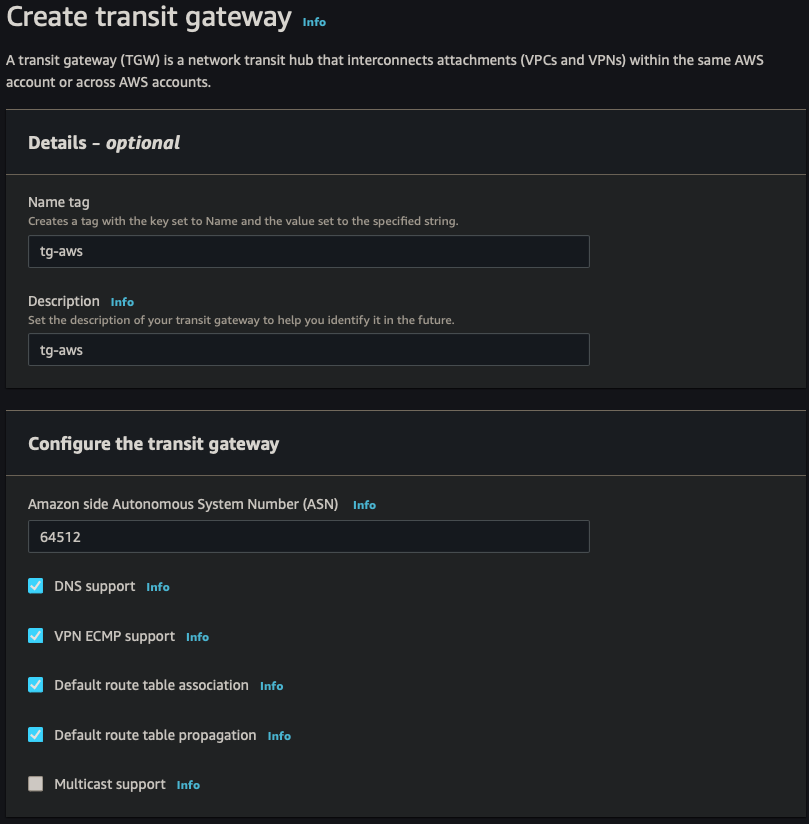

Transit Gateway

Name	tg-aws
Description	tg-aws
ASN	64512

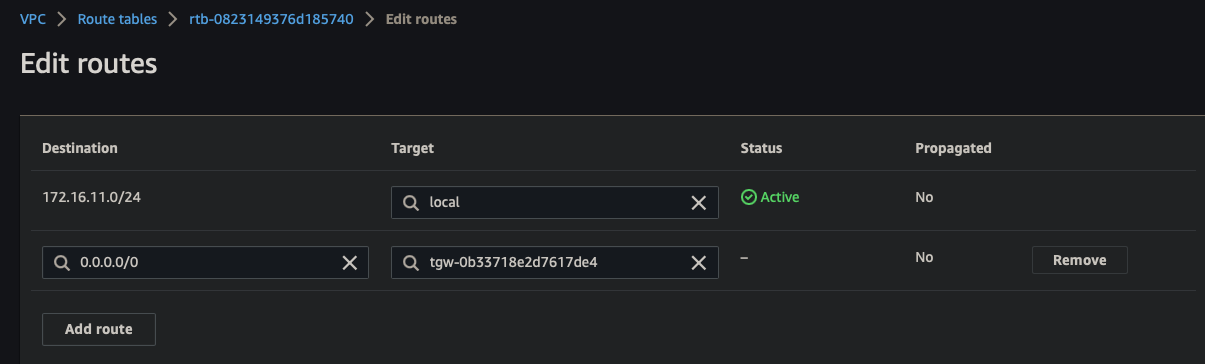

Route Table

• Update routes to TGW

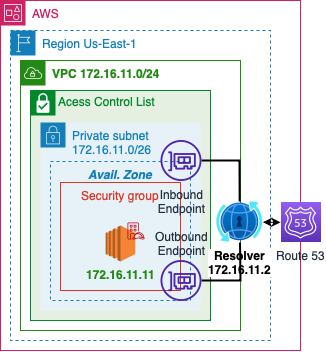

DNS

• AWS will dedicate a reserved IP address x.x.x.2 for a VPC resolver
• Outbound Endpoints will allow you to forward DNS requests for resolvers on other networks
• Inbound Endpoints will allow resolvers on other networks to forward requests to AWS

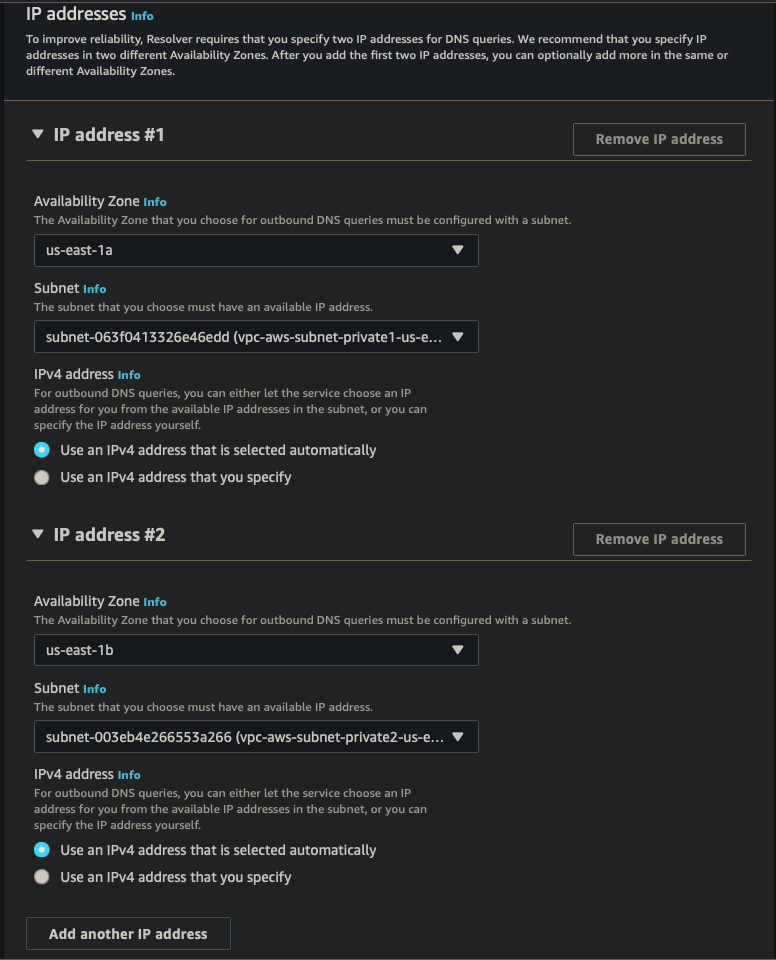

Outbound Endpoint

Endpoint Name	oe-aws
VPC	vpc-aws-vpc
Security Group	Default
Endpoint Type	IPv4
IP Address #1	AZ us-east-1, subnet 1, IPv4
IP Address #2	AZ us-east-2, subnet 2, IPv4

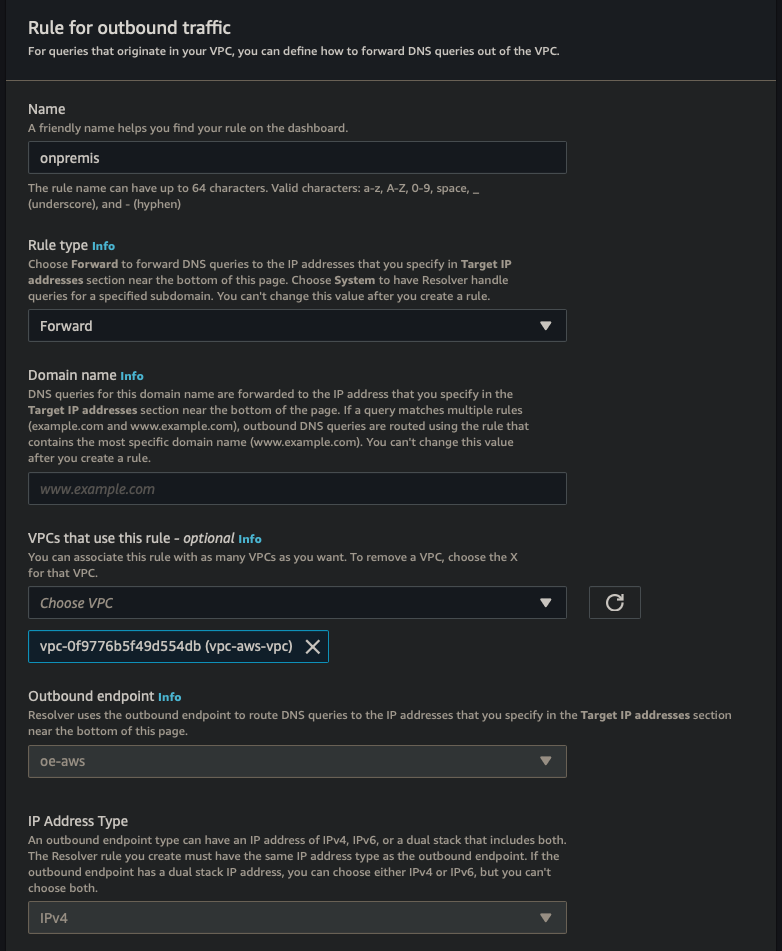

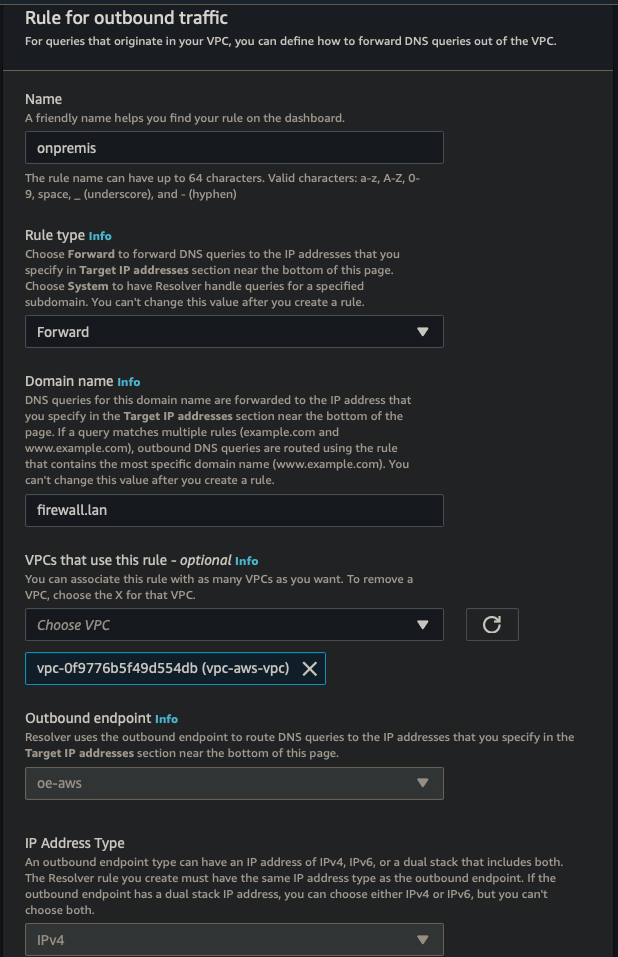

Rule Name	onpremise
Rule Rule Type	Forward
Domain Name	firewall.lan
VPC Rule	vpc-aws-vpc

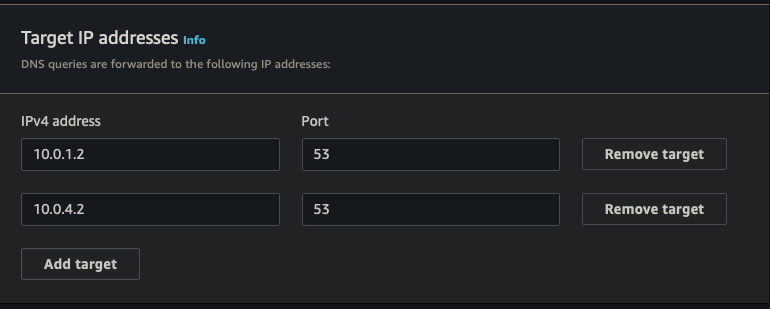

Target IP #1	10.0.1.2:53
Target IP #2	10.0.4.2:53

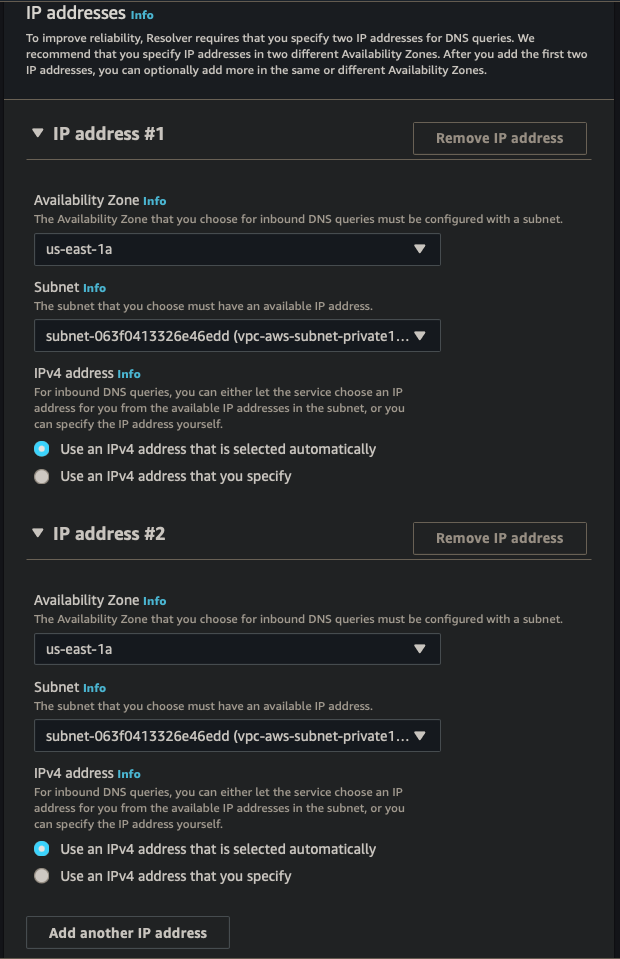

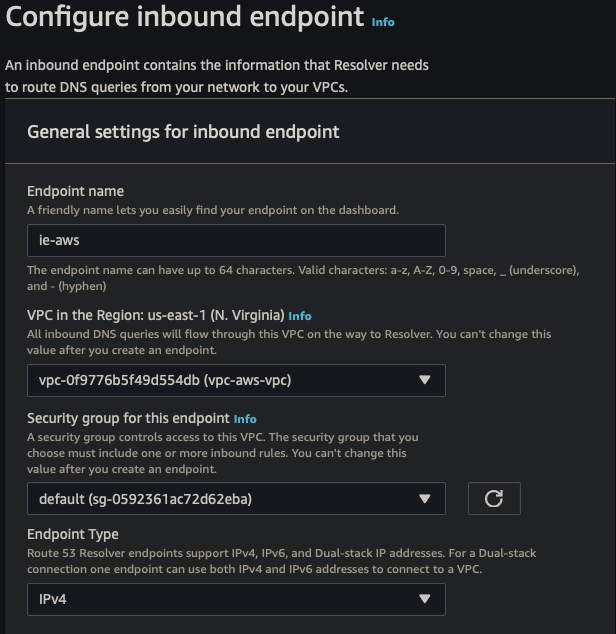

Inbound Endpoint

Endpoint Name	ie-aws
VPC	vpc-aws-vpc
Security Group	Default
Endpoint Type	IPv4
IP Address #1	AZ us-east-1, subnet 1, IPv4
IP Address #2	AZ us-east-2, subnet 2, IPv4

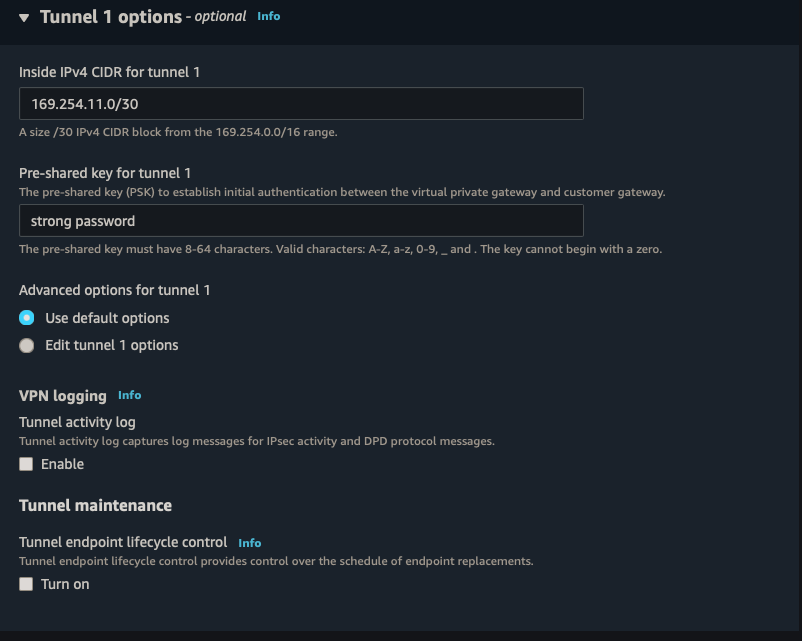

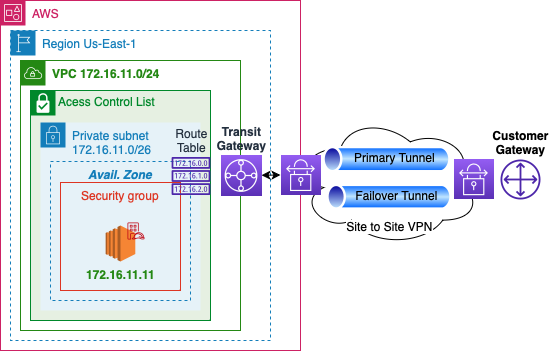

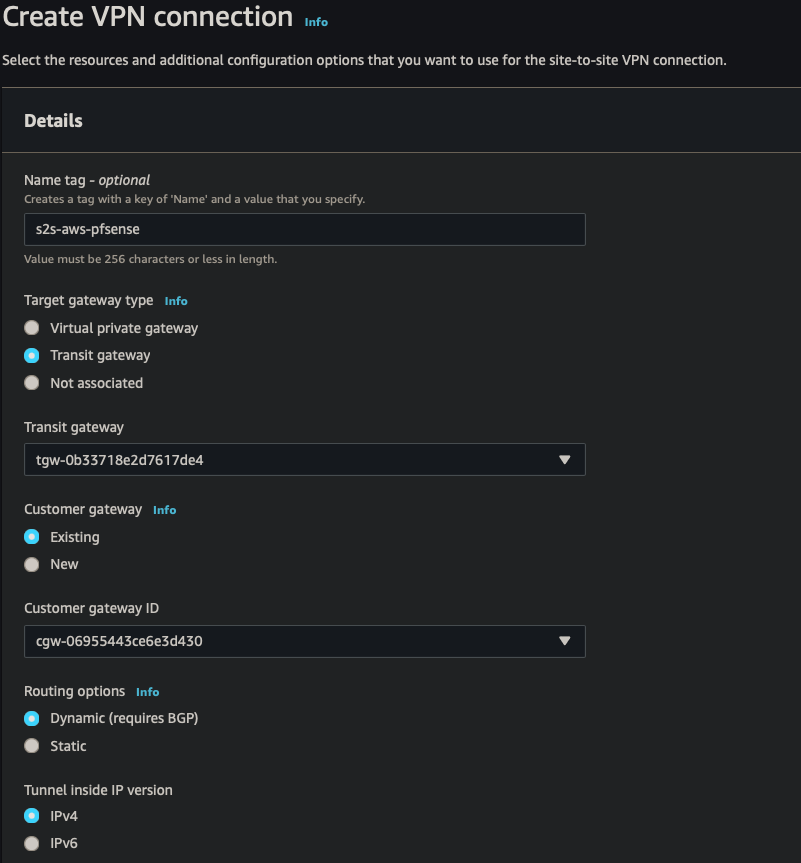

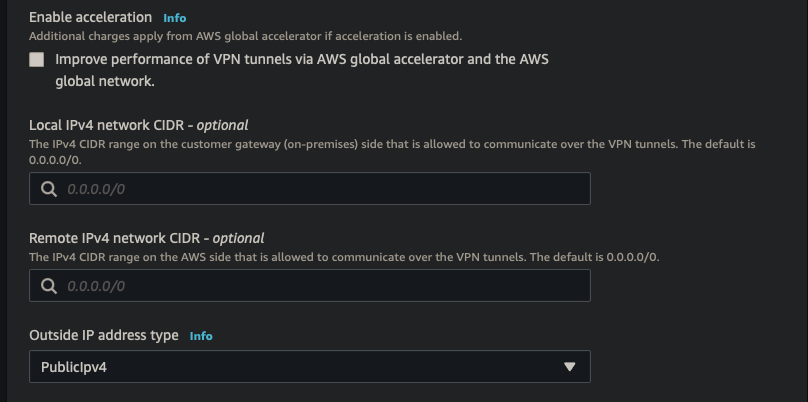

Site to Site

• Use IPsec tunnels to connect AWS to another datacenter
• Have a failover connection for High availability

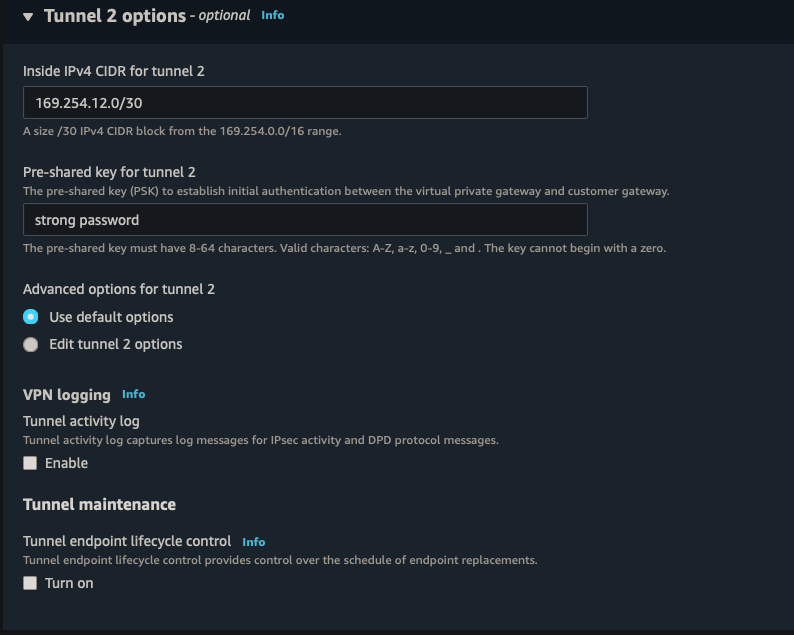

||| |:-:|:-:|:-:| |AWS|s2s-aws-pfsense| |Target gateway type|Transit Gateway| |Transit Gateway|TGW| |Customer Gateway|CGW| |Routing Options|Dynamic| |Tunnel inside IP|IPv4| |Inside IPv4 CIDR for tunnel 1|169.254.11.0/30| |Pre-shared key for tunnel 1|strong password| |Inside IPv4 CIDR for tunnel 2|169.254.12.0/30| |Pre-shared key for tunnel 2|strong password|

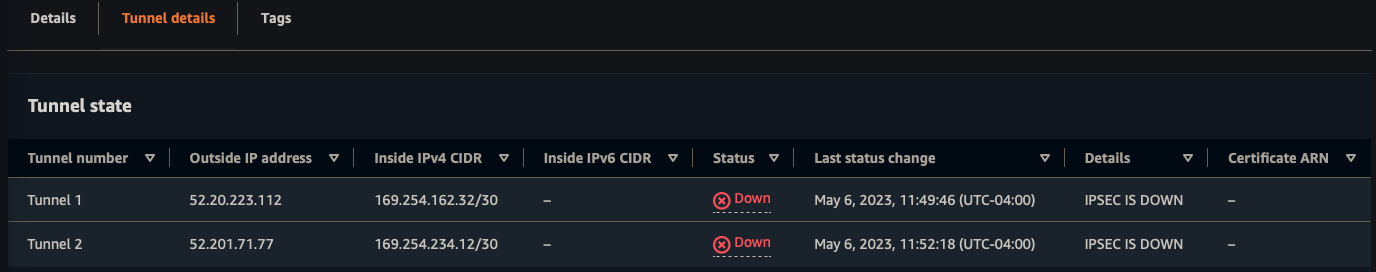

Status

• When BGP session is established, the status will go from down to up

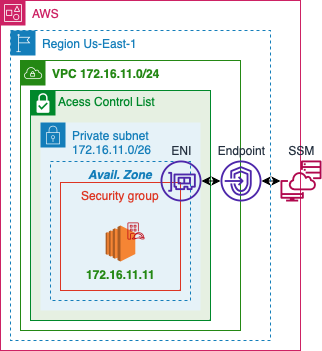

SSM

• Using AWS System Manager will allow remote access without opening any ssh ports
• Use to keep your network private
• Use to debug any connectivity issues

IAM Role Policy

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Action": [
                "ssm:DescribeAssociation",
                "ssm:GetDeployablePatchSnapshotForInstance",
                "ssm:GetDocument",
                "ssm:DescribeDocument",
                "ssm:GetManifest",
                "ssm:GetParameter",
                "ssm:GetParameters",
                "ssm:ListAssociations",
                "ssm:ListInstanceAssociations",
                "ssm:PutInventory",
                "ssm:PutComplianceItems",
                "ssm:PutConfigurePackageResult",
                "ssm:UpdateAssociationStatus",
                "ssm:UpdateInstanceAssociationStatus",
                "ssm:UpdateInstanceInformation"
            ],
            "Resource": "*",
            "Effect": "Allow"
        },
        {
            "Action": [
                "ssmmessages:CreateControlChannel",
                "ssmmessages:CreateDataChannel",
                "ssmmessages:OpenControlChannel",
                "ssmmessages:OpenDataChannel"
            ],
            "Resource": "*",
            "Effect": "Allow"
        },
        {
            "Action": [
                "ec2messages:AcknowledgeMessage",
                "ec2messages:DeleteMessage",
                "ec2messages:FailMessage",
                "ec2messages:GetEndpoint",
                "ec2messages:GetMessages",
                "ec2messages:SendReply"
            ],
            "Resource": "*",
            "Effect": "Allow"
        }
    ]
}

Endpoint

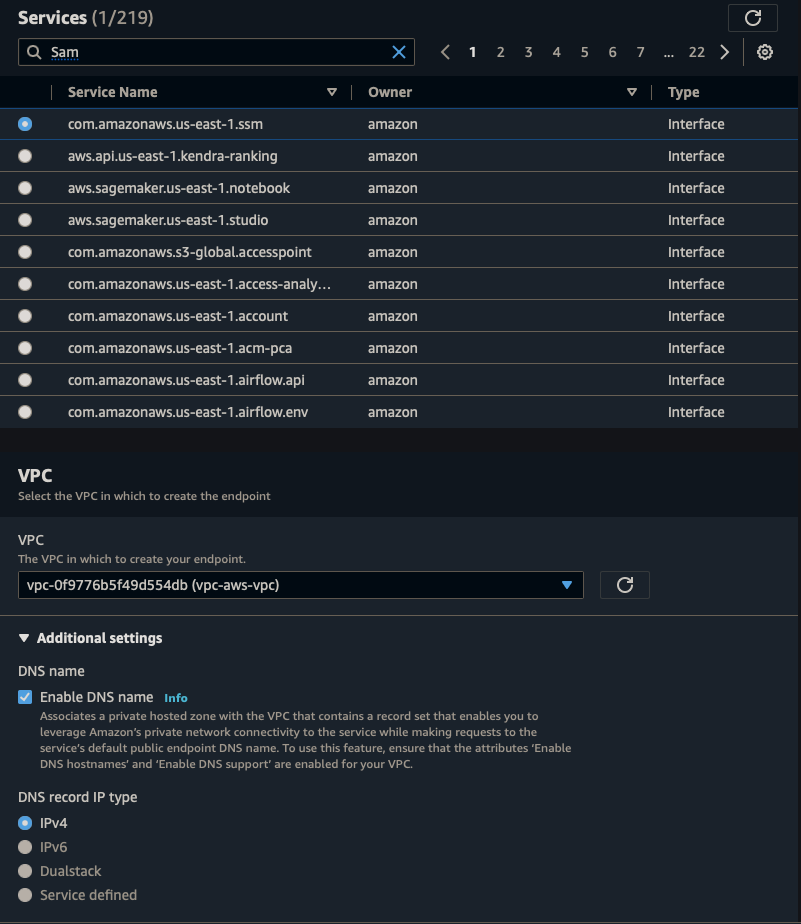

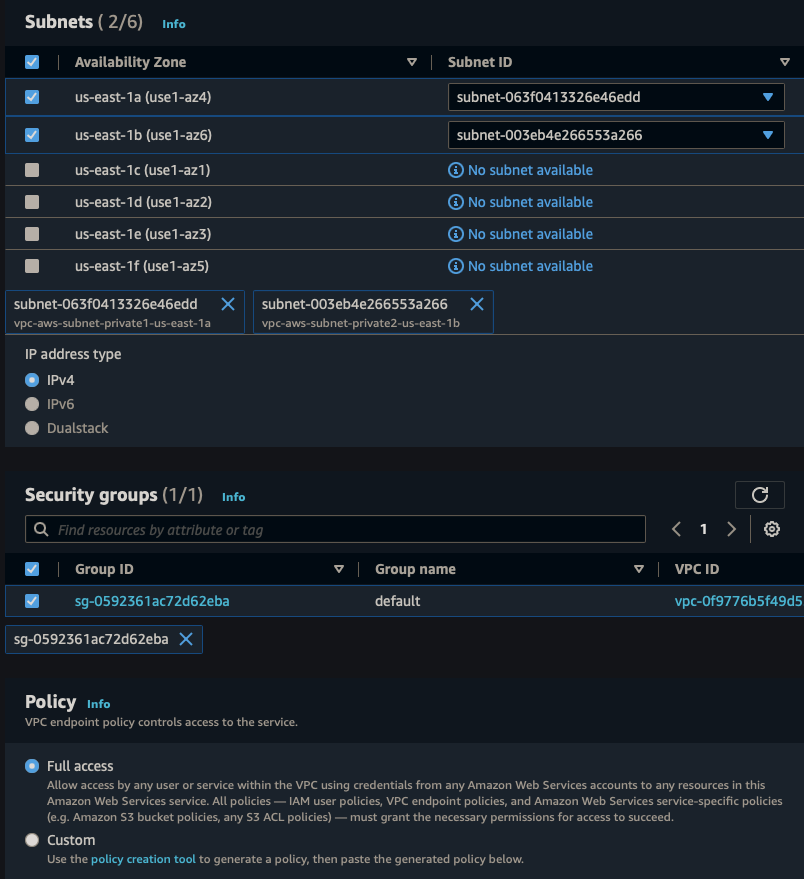

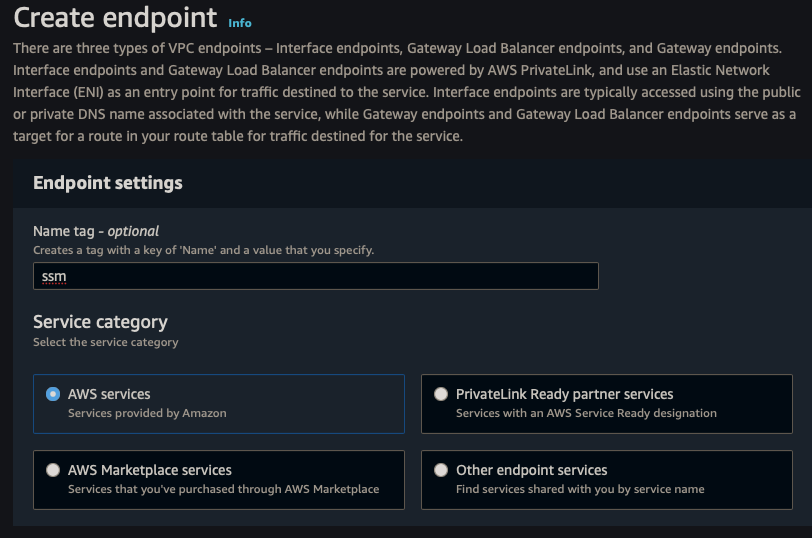

SSM Endpoint

||| |:-:|:-:|:-:| |Name|ssm-endpoint| |Service Category|AWS Service| |Service|SSM| |VPC|vpc-aws-vpc| |Subnets|us-east-1, us-east-2| |Security Group|Default| |Policy|Full Access|

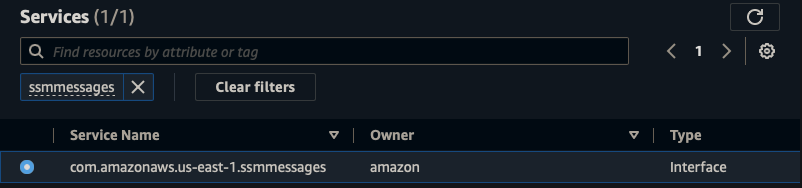

SSMMessage Endpoint

||| |:-:|:-:|:-:| |Name|ssmmessage-endpoint| |Service Category|AWS Service| |Service|SSMmessages| |VPC|vpc-aws-vpc| |Subnets|us-east-1, us-east-2| |Security Group|Default| |Policy|Full Access|

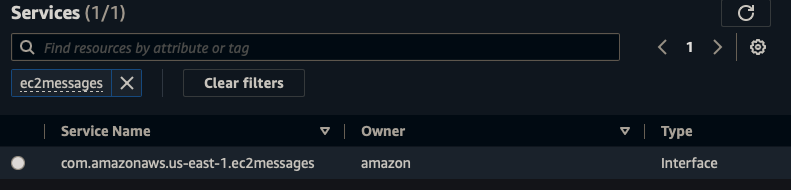

EC2Message Endpoint

||| |:-:|:-:|:-:| |Name|ec2message-endpoint| |Service Category|AWS Service| |Service|ec2messages| |VPC|vpc-aws-vpc| |Subnets|us-east-1, us-east-2| |Security Group|Default| |Policy|Full Access|

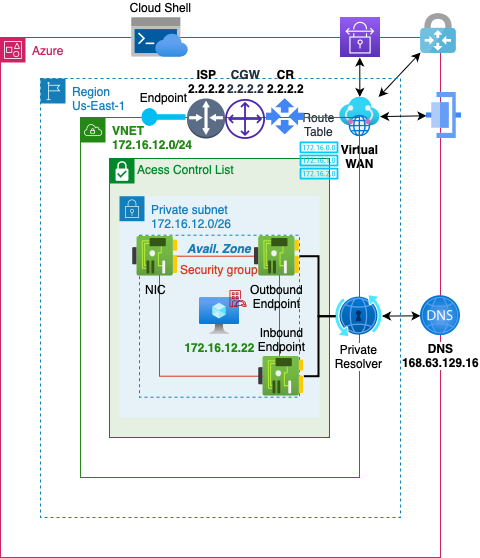

Azure

VNET

• Create a Virtual Network on Azure

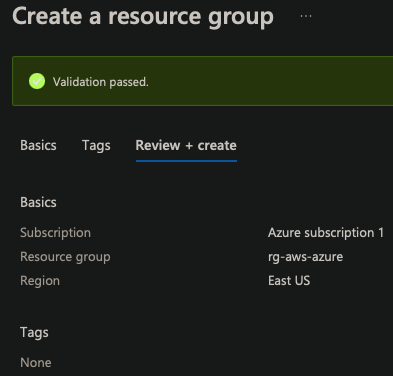

Resource Group

• Resource Group provides a single detailed view of all resources in a groups stack

Resource group	rg-aws-azure
Region	East US

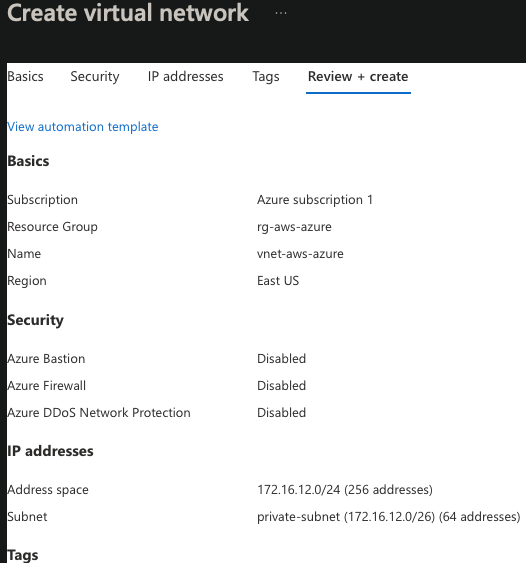

Virtual Network

• This Iaas will build a virtual network similar to a VPC
• Create 1 network /24 CIDR to create 4 subnets with /26 CIDR

Resource group	rg-aws-azure
Name	vnet-aws-azure
Region	East US
Bastion	Disabled
Firewall	Disabled
DDoS	Disabled
Adress Space	172.16.12.0/24
Subnet	172.16.12.0/26

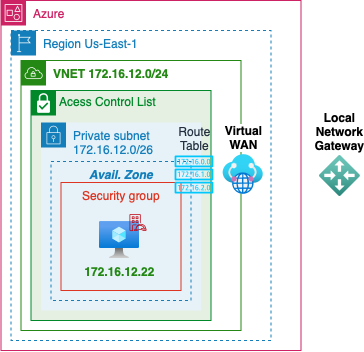

VWAN

• TODO: Azure VWAN
• Have a AWS site-to-site connection config to populate data

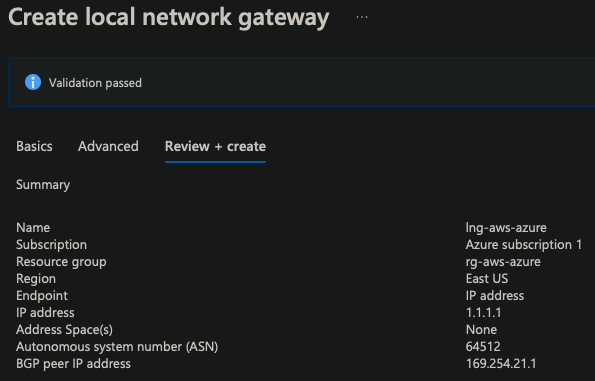

Local Network Gateway

• IP of the customer/data center Gateway

Resource group	rg-aws-azure
Region	East US
Endpoint	IP Address
IP Address	1.1.1.1
Address Space(s)	None
ASN	64512
BGP	169.254.21.1

Reserved APIPA

||| |:-:|:-:|:-:| |AWS|169.254.0.0/16| |Azure|169.254.21.0/24 - 169.254.22.0/24|

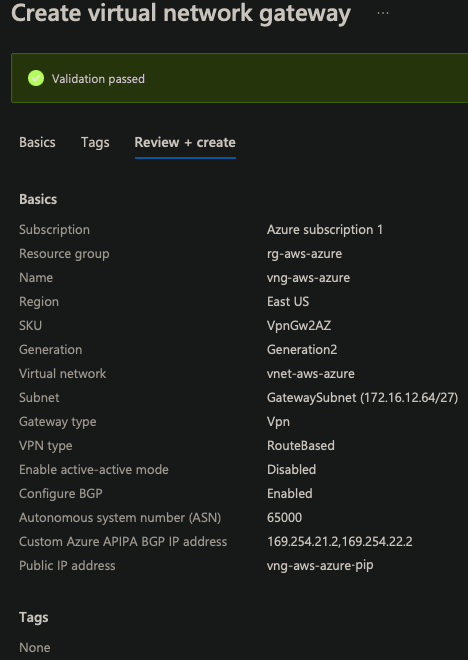

Virtual Network Gateway

Resource group	rg-aws-azure
Region	East US
SKU	VPNGw2AZ
Generation	2
VNET	vnet-aws-azure
Subnet	172.16.12.64/27
Gateway Type	VPN
VPN Type	Route Based
Active-active	Disabled
BGB	Enabled
ASN	65000
Custom APIPA	169.254.21.2, 169.254.22.2
Public IP adress	vng-aws-azure-pip

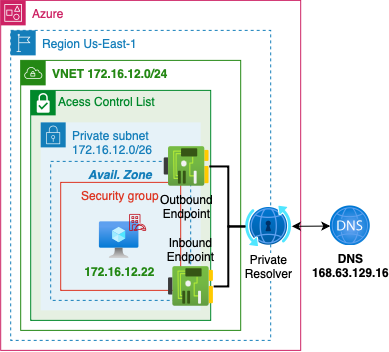

Private Resolver

• TODO: Azure DNS

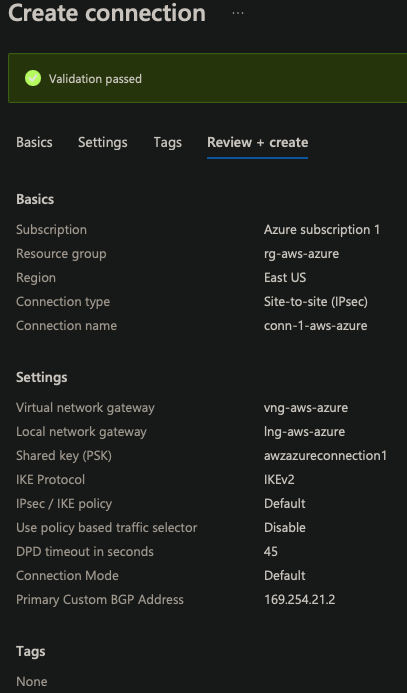

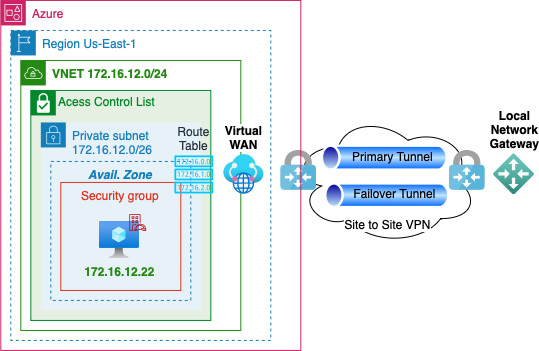

Connection

• Use to create an IPsec connection using BGP
• Create a second connection for failover

Resource group	rg-aws-azure
Region	East US
Connection type	Site-to-site(IPsec)
Connection name	conn-1-aws-azure
Virtual Network Gateway	vng-aws-azure
Local Network Gateway	lng-aws-azure
IKE Protocol	IKEv2
IpSec / IKE policy	Default
Use Policy based traffic selector	Disable
DPD timeout	45
Connection Mode	Default
BGP	169.254.21.2

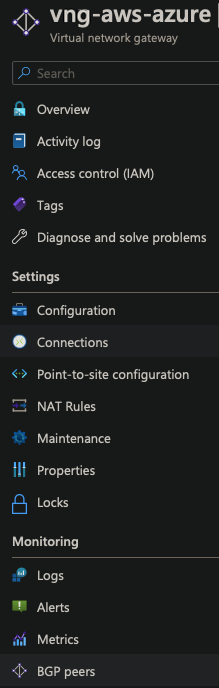

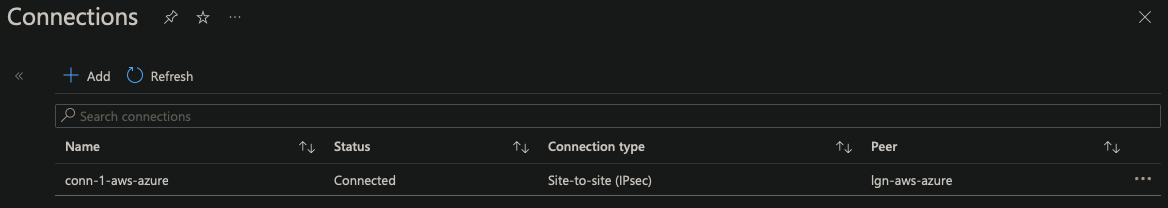

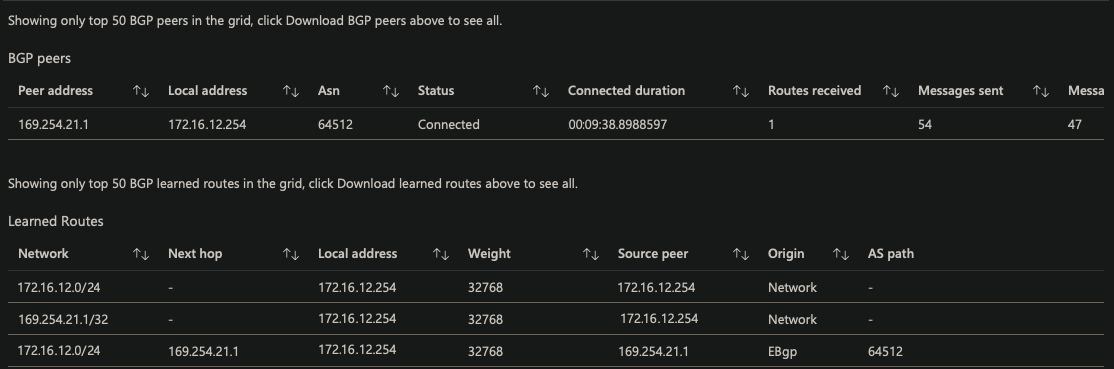

BGP

• Verify Connection is enabled
• Create second connection for failover

• Verify Route propagation from BGP

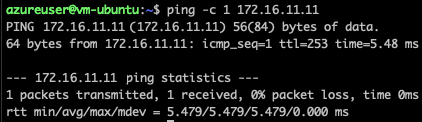

Azure VM

• Azure -> AWS

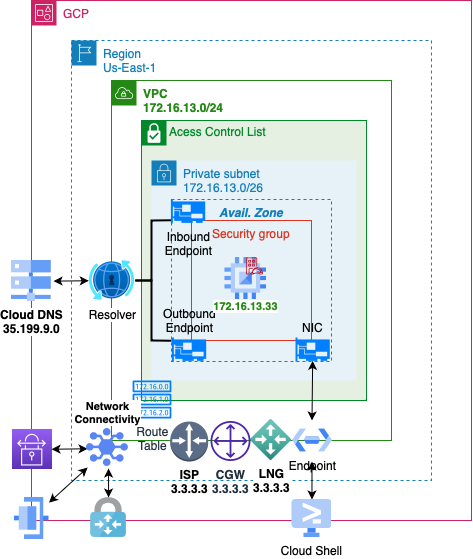

GCP

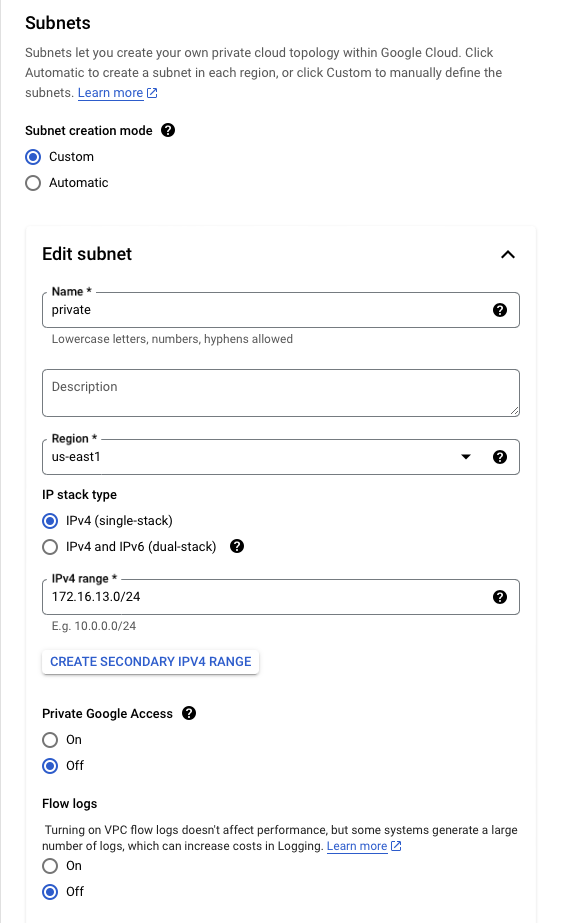

VPC

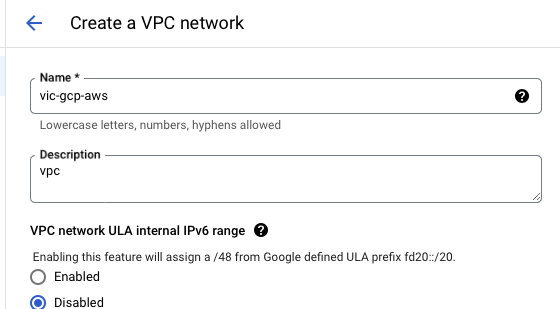

• Create a Virtual Private Cloud on Google

Name	vpc-gcp-aws
Description	VPC
IPv6	Disabled
Subnet	Custom
Subnet Name	Private
Subnet Region	us-east-1
IP stack	IPv4
IP range	172.16.13.0/24
Private Google Access	off
Flow Logs	off

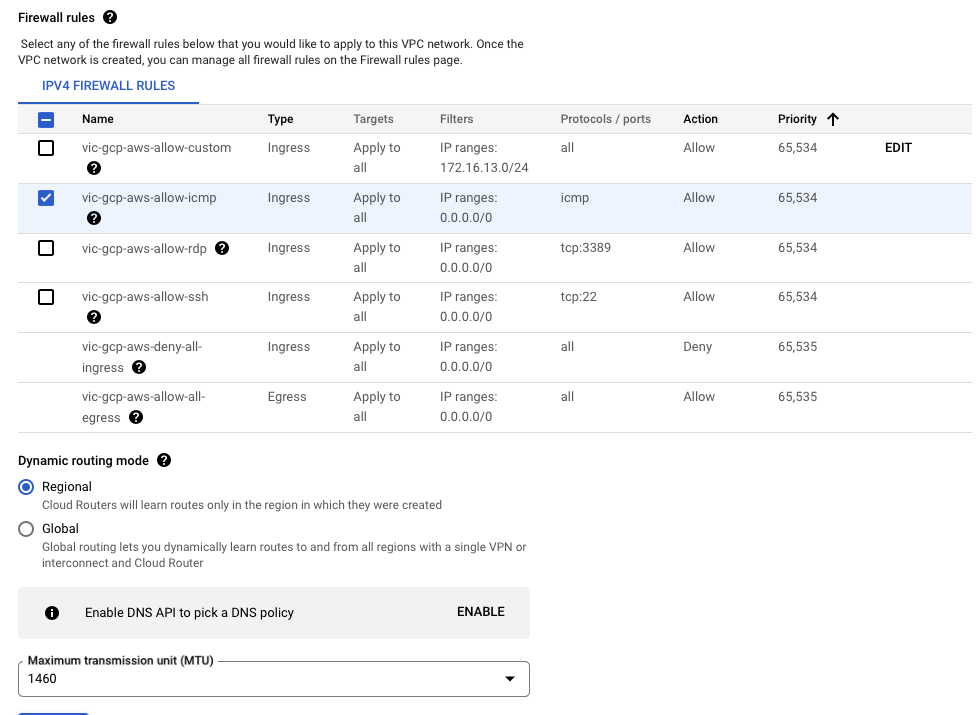

IPv4 Firewall Rule	Ingress Apply to all 0.0.0.0/0 ICMP Allow
Dynamic Routing	Regional

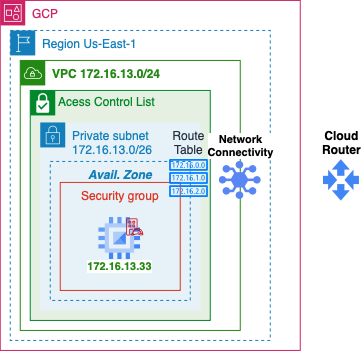

Network Connectivity Center

• TODO: GCP Network Connectivity
• Have a AWS site-to-site connection config to populate data

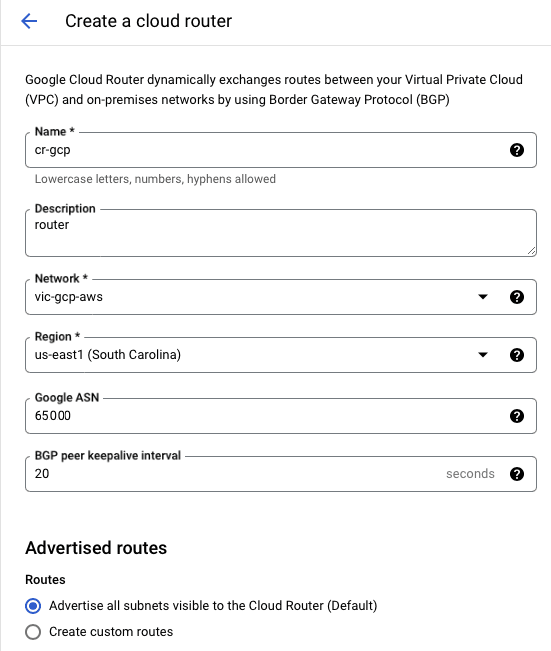

Cloud Router

Name	cr-gcp
Description	route
Network	vpc-gcp-aws
Region	us-east-1
ASN	65000
Interval	20
Routes	Advertise all subnets to CR

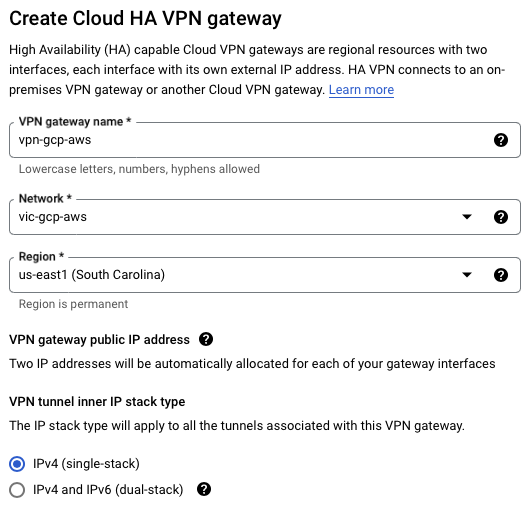

VPN Gateway

Name	vpn-gcp-aws
Network	vpc-gcp-aws
Region	us-east-1
IP stack	IPv4

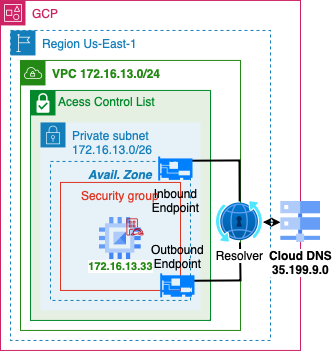

Cloud DNS

• TODO: GCP DNS

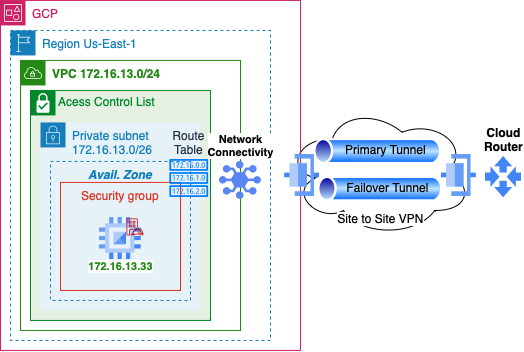

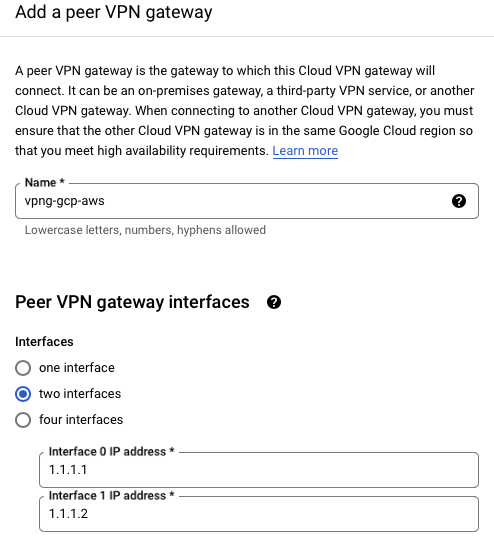

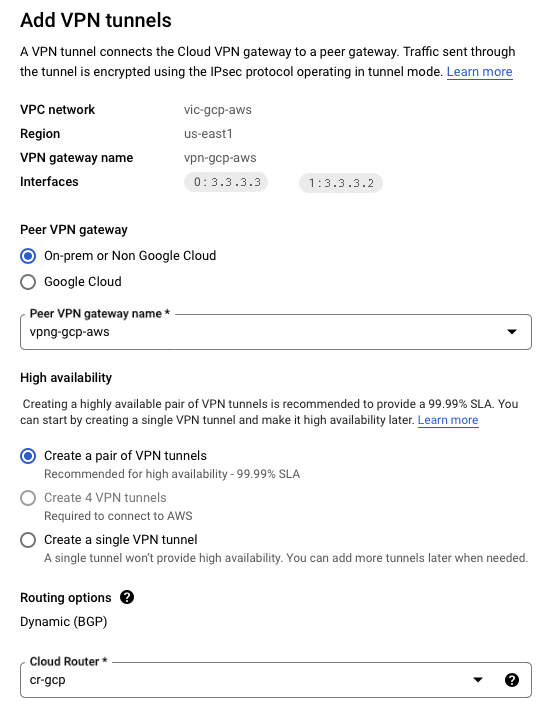

Peer VPN

• Set up the infrastructure for GCP VPN

• Repeats these steps on interface 1 (failover)

Name	vpng-gcp-aws
Interfaces	two interfaces
Interface 0	3.3.3.3
Interface 1	3.3.3.2
Peer VPN Gateway	On-Prem or Non Google
Peer VPNG Name	vpng-gcp-aws
High Availability	Create a pair of VPN tunnles
Cloud Router	cr-gcp
Associated Peer VPNG interface	0: 1.1.1.1
Name	conn1-gcp-aws
pre-shared key	strong password
Peer ASN	64512

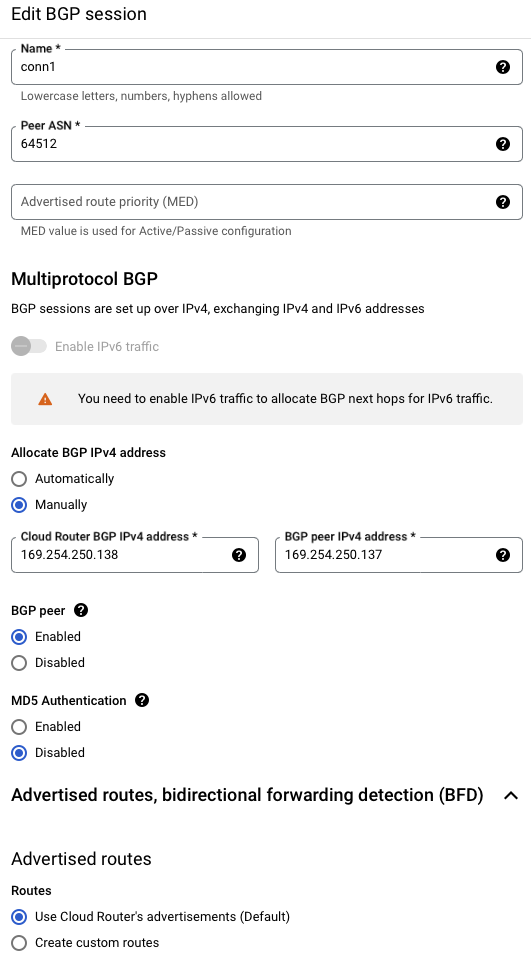

BGP

Name	conn1
Peer ASN	64512
BGB IPv4 address	Manually
Cloud Router BGP	169.254.250.138
BGP Peer Address	169.254.250.137

• Verify Dynamic Route update

GCP vm

• GCP -> AWS

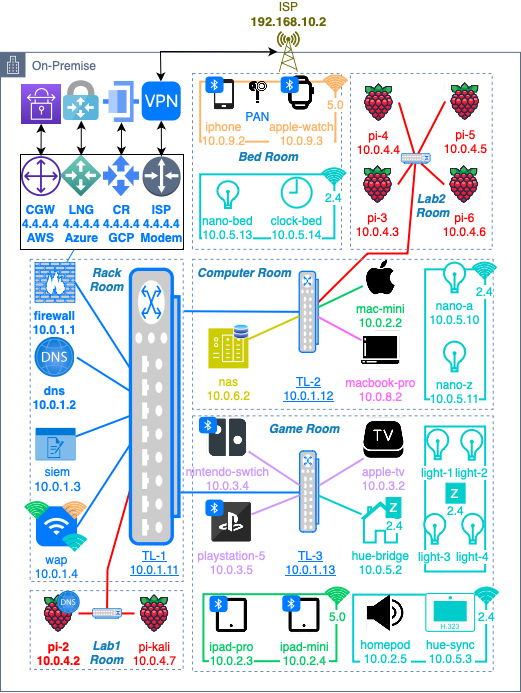

PFSense

VLAN

Check out this write-up on how to configure VLANs with pfsense

ISP

TODO: Check out this write-up on how to configure a VPN Server with pfsense

PiHole

TODO: Check out this write-up on how to configure a DNS server with PiHole

IPSec

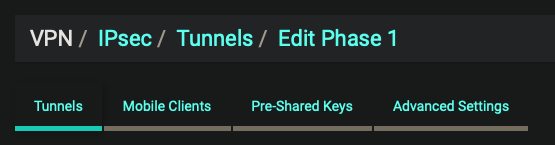

Phase 1

• Start by creating a primary tunnel and repeat the below steps for the failover connection tunnel 2

Description	conn1-aws-pfsense
Key Exchange version	IKEv2
Remote Gateway	1.1.1.1
Pre-Shared Key	strong password key token
Algorithm	AES
Key Length	128 bits
Hash	SHA256
DH Group	14 (2048 bit)
Max failures	3

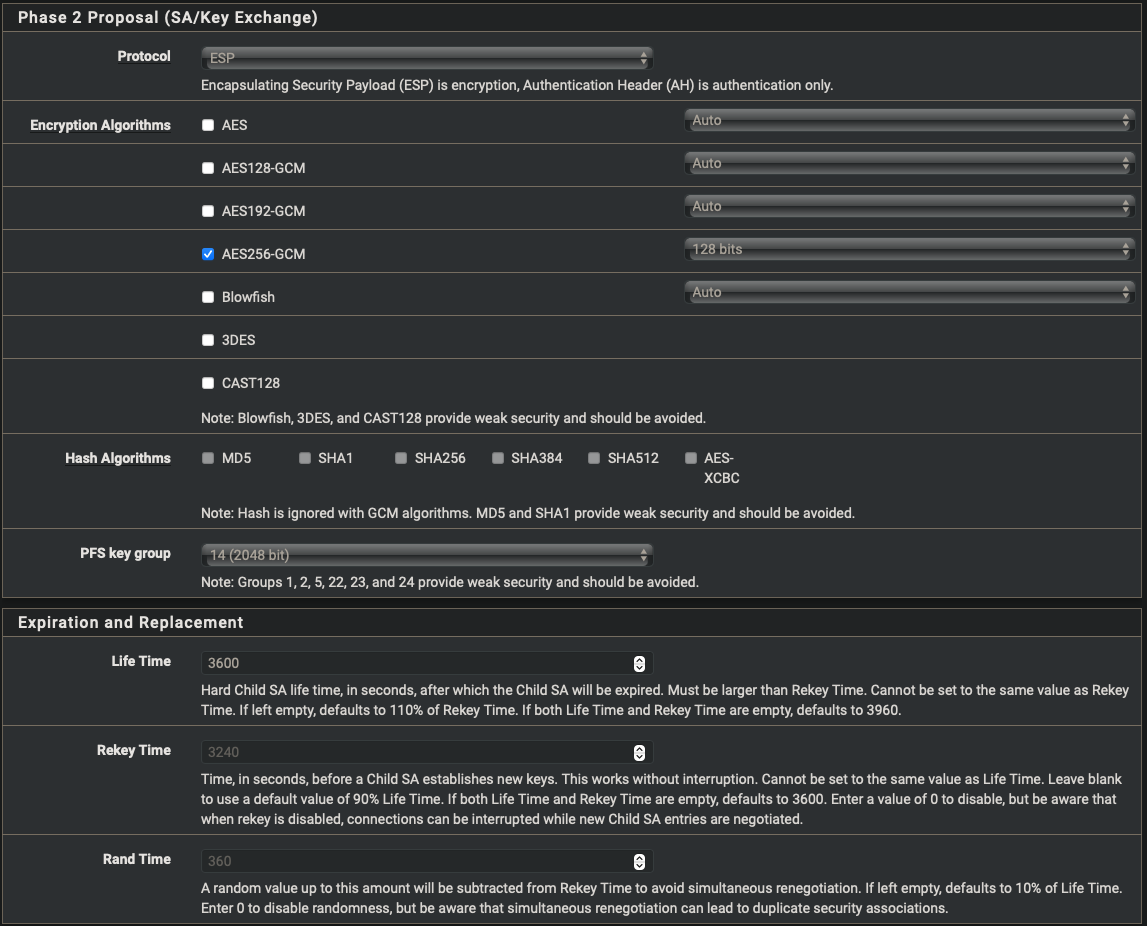

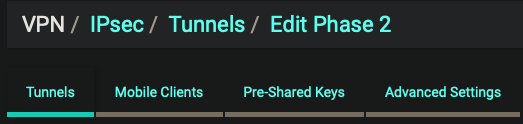

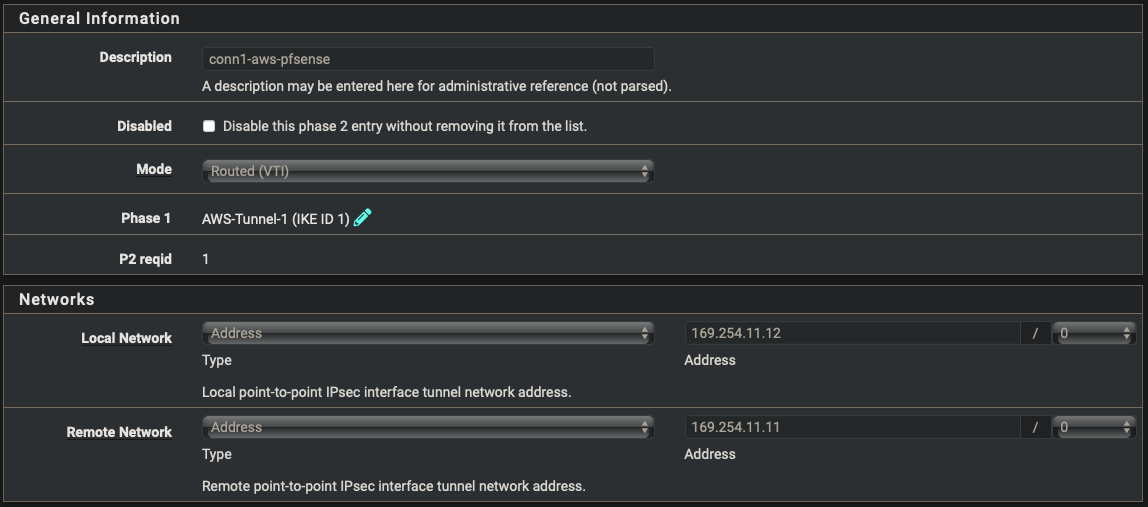

Phase 2

• Start by creating a primary tunnel and repeat the below steps for the failover connection tunnel 2

Description	conn1-aws-pfsense
Mode	Routed (VTI)
Local Network	address: 169.254.11.12
Remote Network	address: 169.254.11.11
Encryption Algorithm	AES256-CGM 128bits

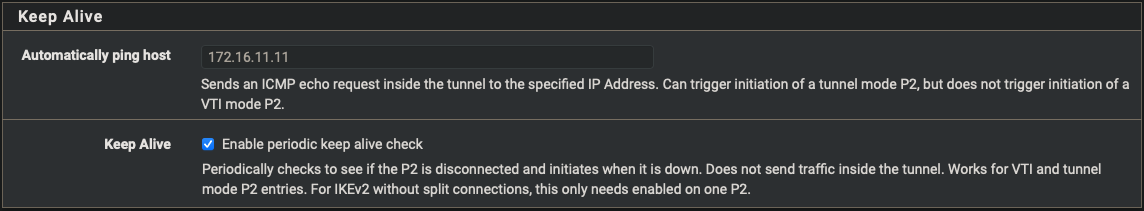

Ping Host	172.16.11.11
Keep Alive	Enabled

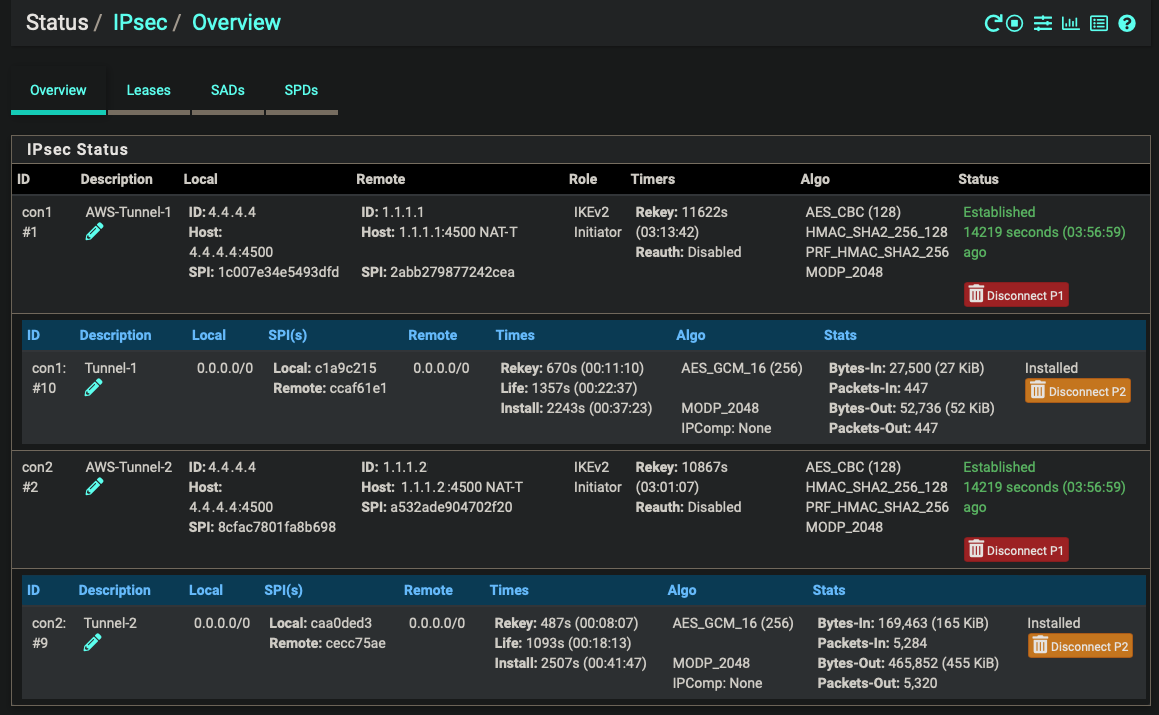

Status

• Both primary and failover tunnels connected with IPSec

BGP

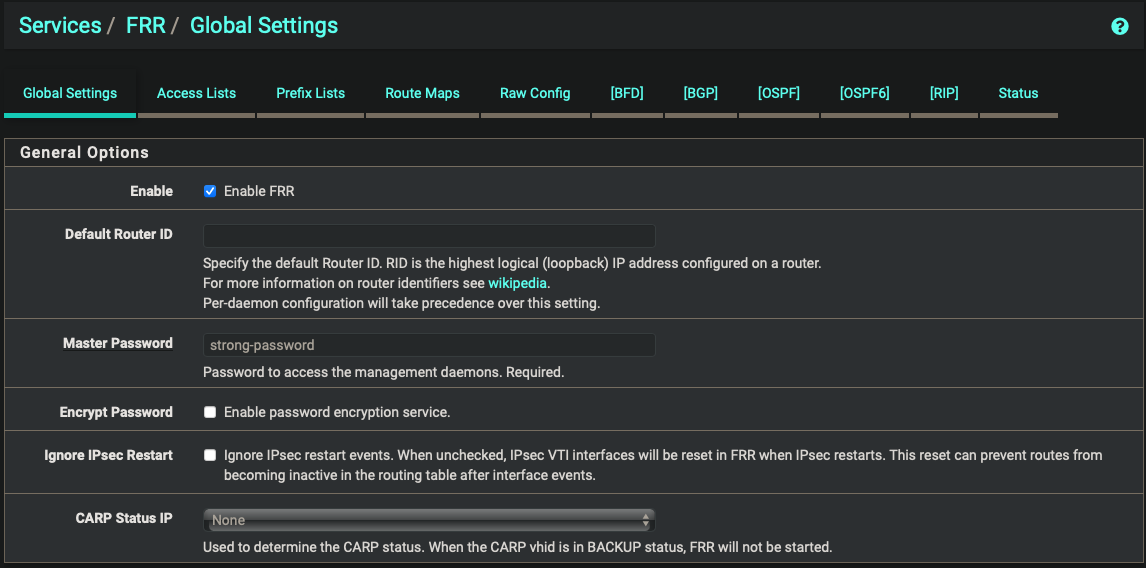

FRR Global Settings

Enabled	true
Master Password	strong password

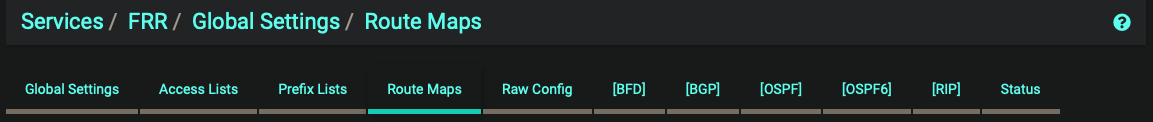

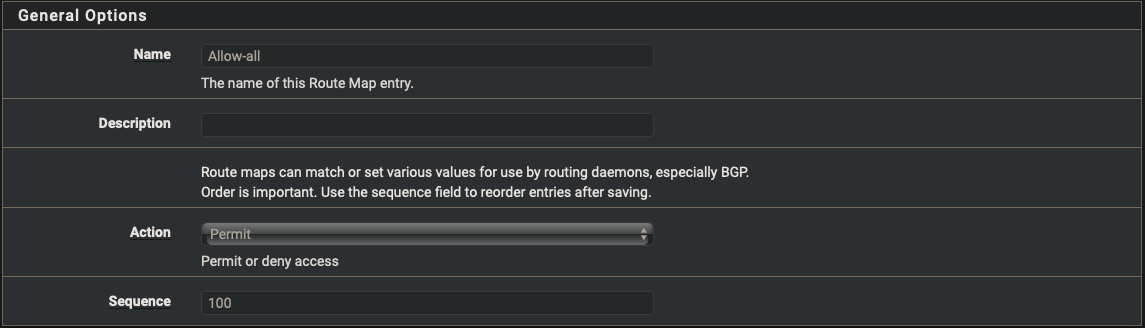

FRR Route Maps

Name	Allow-all
Action	Permit
Sequence	100

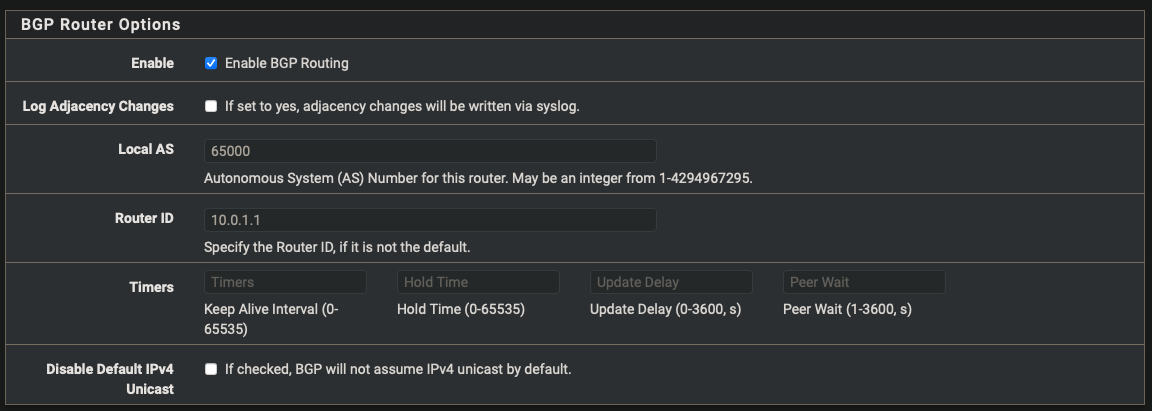

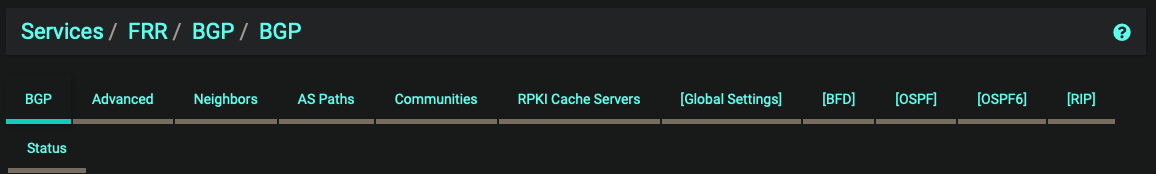

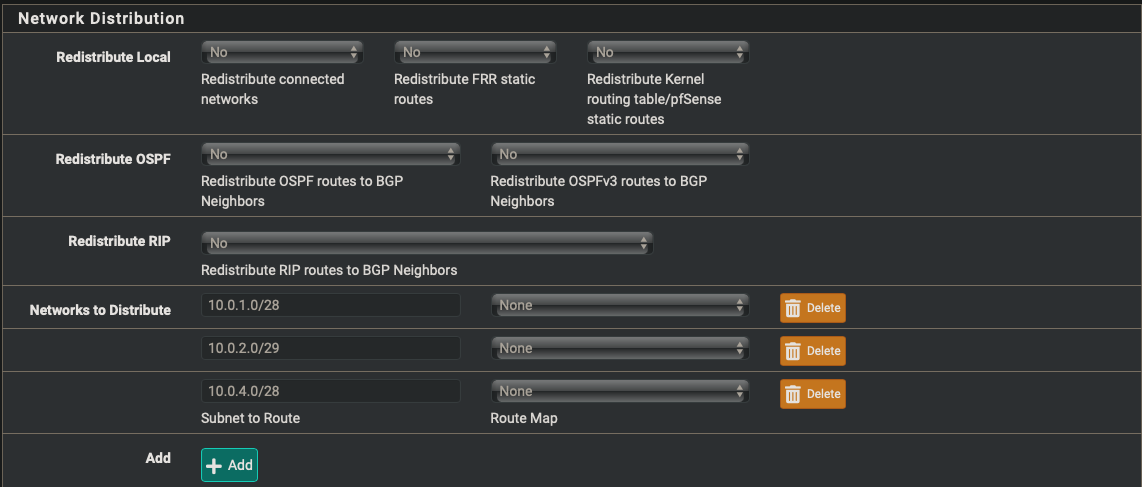

FRR BGB

Enabled	true
Local AS	65000
Router ID	10.0.1.1
Networks to distrbute	10.0.1.0/28, 10.0.2.0/29, 10.0.4.0/28

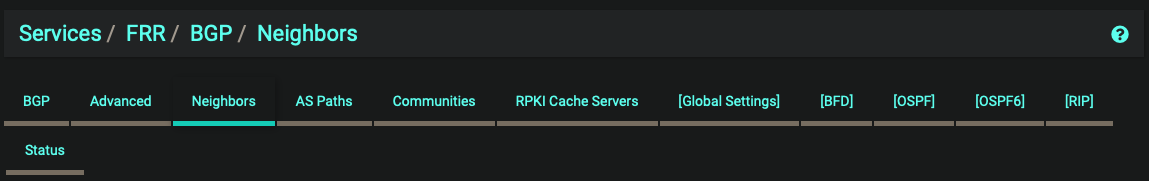

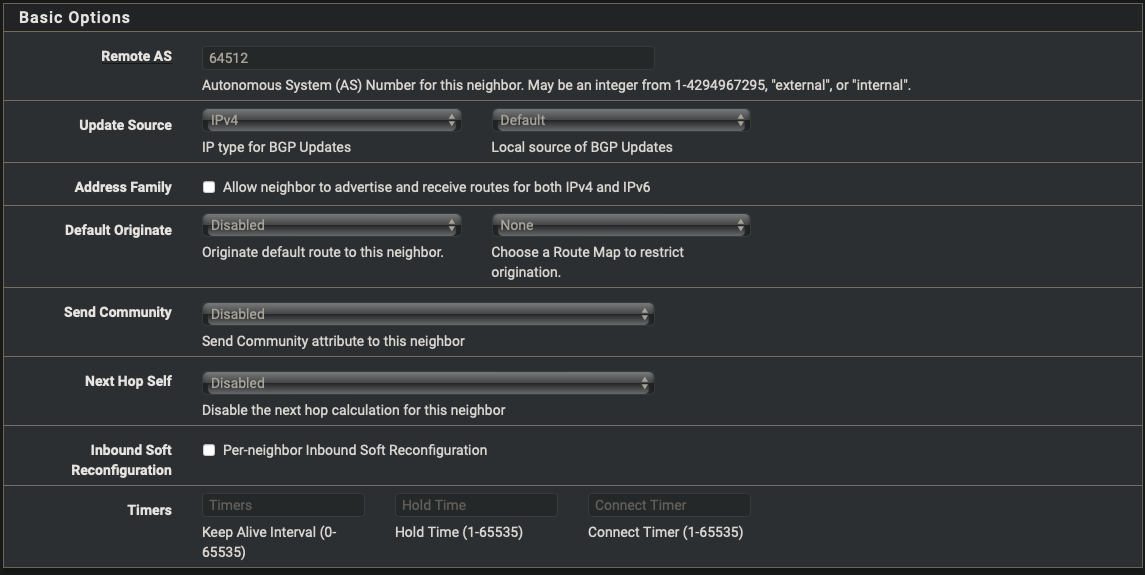

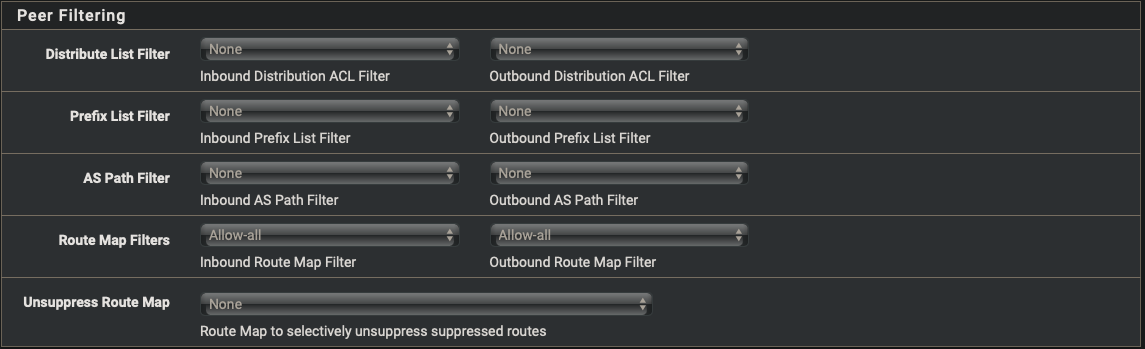

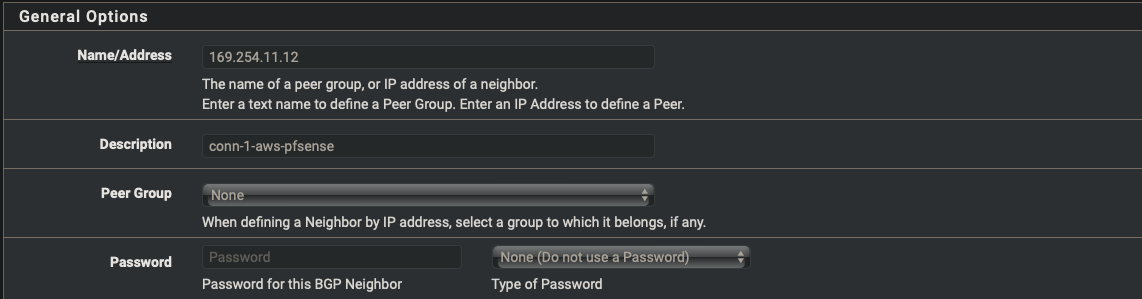

FRR Neighbors

• Start with the primary tunnel and repeat the steps for the failover tunnel

Name/Address	169.254.11.12
Description	conn1-aws-pfsense
Remote AS	64512
Inbound Route Map Filters	Allow-all
Outbound Route Map Filters	Allow-all

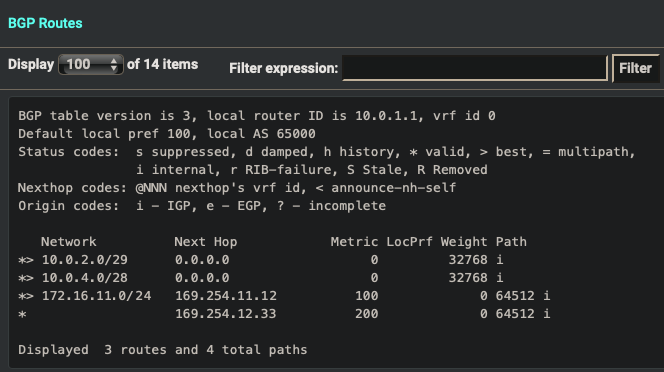

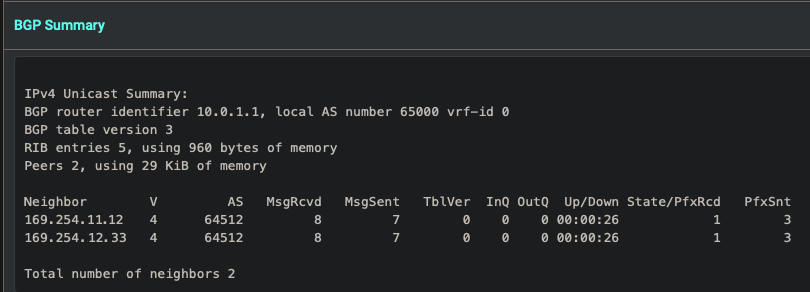

FRR Status

• Verify Dynamic Routes have been updated

• View the BGP Summary

Mac

• Mac -> AWS
